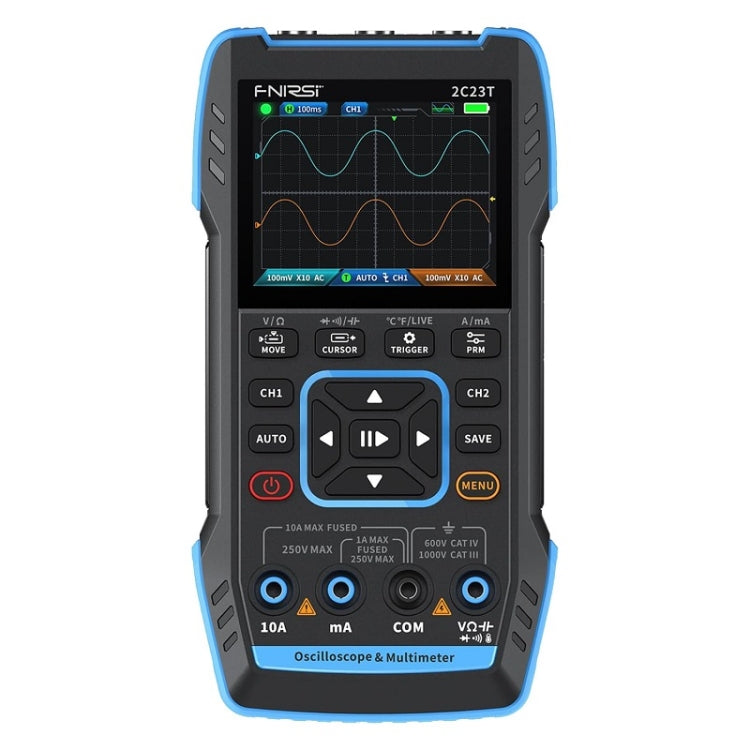

FNIRSI 3 In 1 Handheld Digital Oscilloscope Dual-Channel Multimeter, 2C23T Standard, 2C23T Upgrade

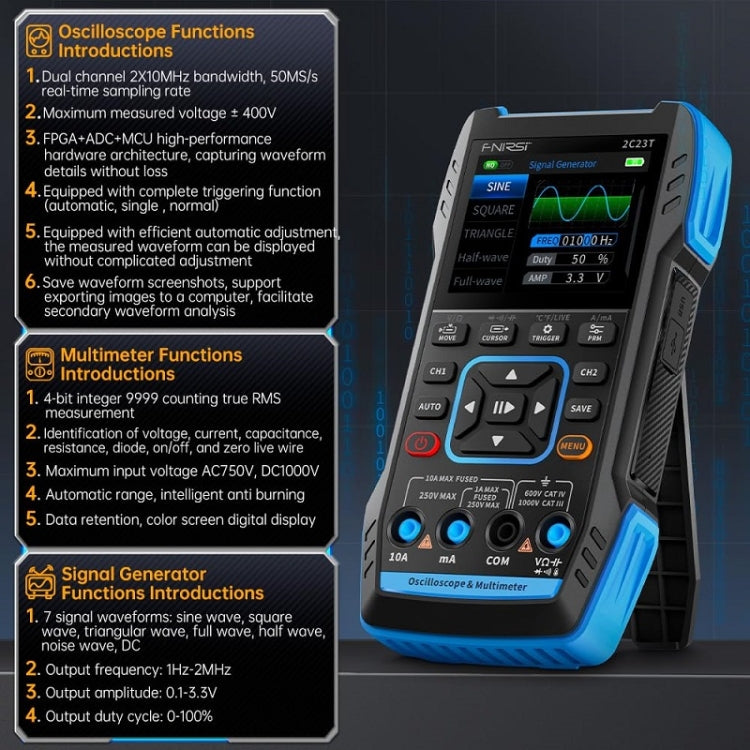

Oscilloscope function introduction:

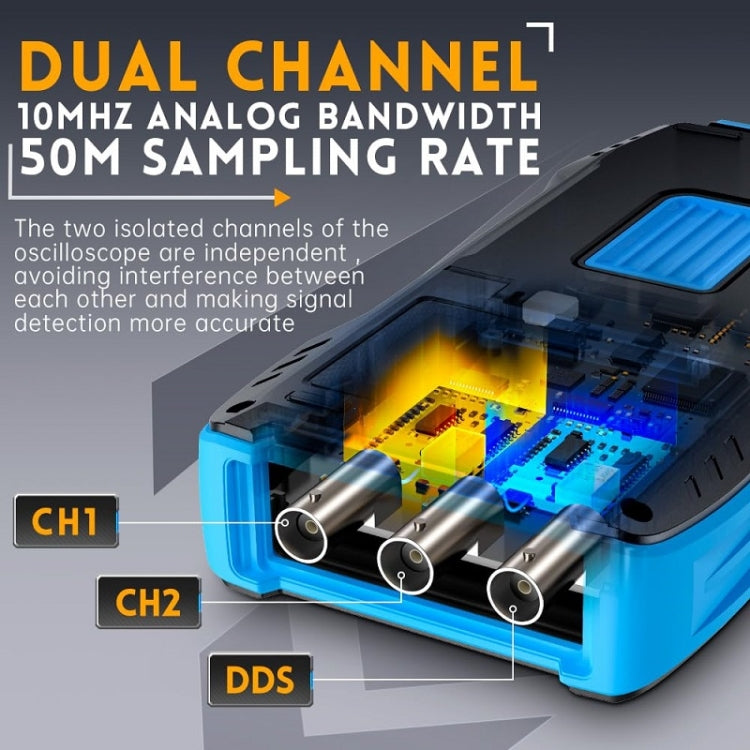

1. Dual channel 2X10MHz bandwidth, 50MS/s real-time sampling rate
2. Measuring voltage: 400V (MAX)
3. FPGA+ADC+MCU high-performance hardware architecture, waveform details are captured without loss
4. With complete trigger functions (automatic, single, regular)
5. Equipped with efficient one-button automatic adjustment, the measured waveform can be displayed without cumbersome adjustments.

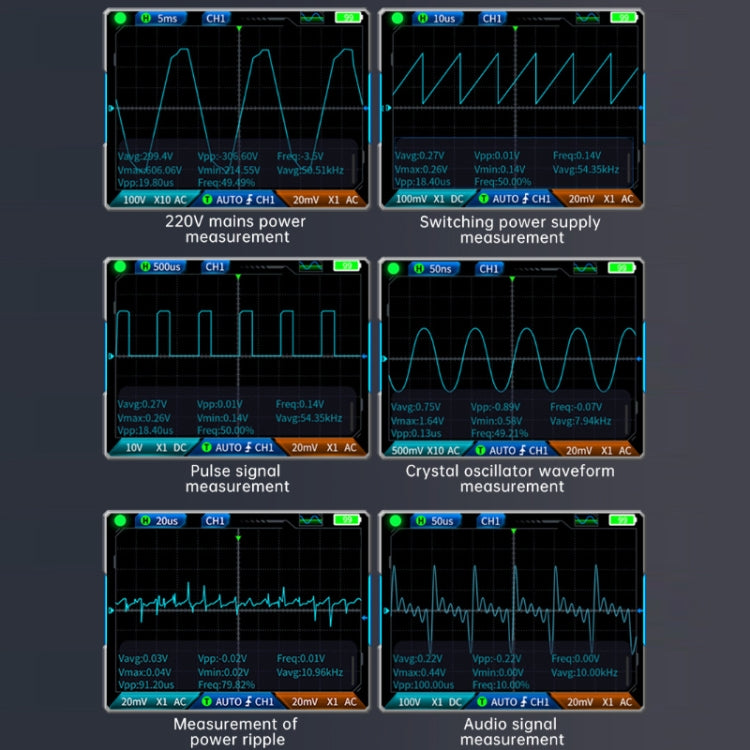

6. Save waveform screenshots and support exporting pictures to the computer to facilitate secondary waveform analysis.

Multimeter function introduction:
1. Four-digit integer 9999 count true effective value measurement
2. Voltage, current, capacitance, resistance, diode, continuity, zero line identification, temperature
3. Measuring voltage: AC750V, DC1000V (MAX)
4. Automatic range, intelligent anti-burning
5. Data retention, color screen digital display

Introduction to signal generator functions
1. 7 signal waveforms: sine wave, square wave, triangle wave, full wave, half wave, noise wave, DC
2. Output frequency: 1Hz-2MHz
3. Output amplitude: 0.1-3.3V
4. Output duty cycle: 0-100

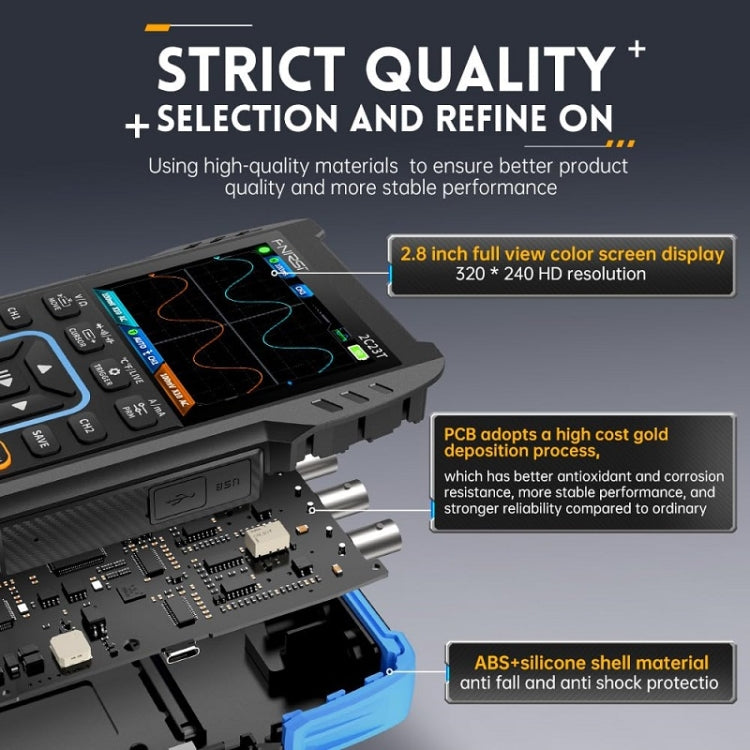

1. Screen: 2.8-inch true color screen
2. Resolution: 320 x 240
3. Charging: TYPE-C (5V/1A)
4. Battery: 3000mAh lithium battery
5. Supported functions: oscilloscope, signal generator, digital multimeter
6. Standby time: 8 hours

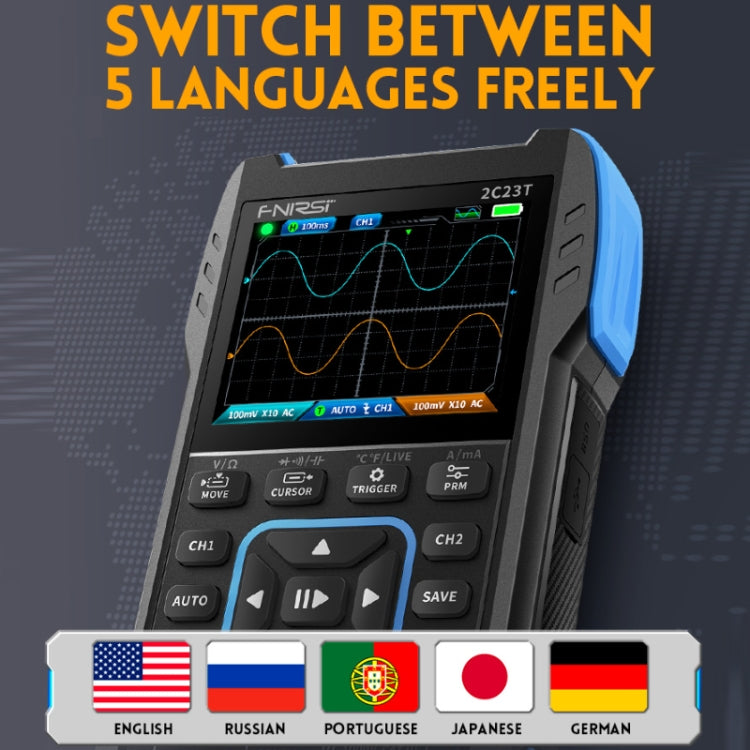

7. Language: English, Russian, Portuguese, Japanese, German
8. Size: 141.7x93.5x38mm
9. Weight: 300g
10. The hardware architecture adopts the same ARM + FPGA + high-speed ADC solution as that of desktop computers. It has high cost and is an unusual CPU direct acquisition solution. The trigger system is powerful and has super waveform capture capabilities without losing the waveform details.
11. It has complete trigger modes: automatic, single, and normal; equipped with efficient one-button automatic adjustment, which can display the measured signal waveform without cumbersome adjustments.

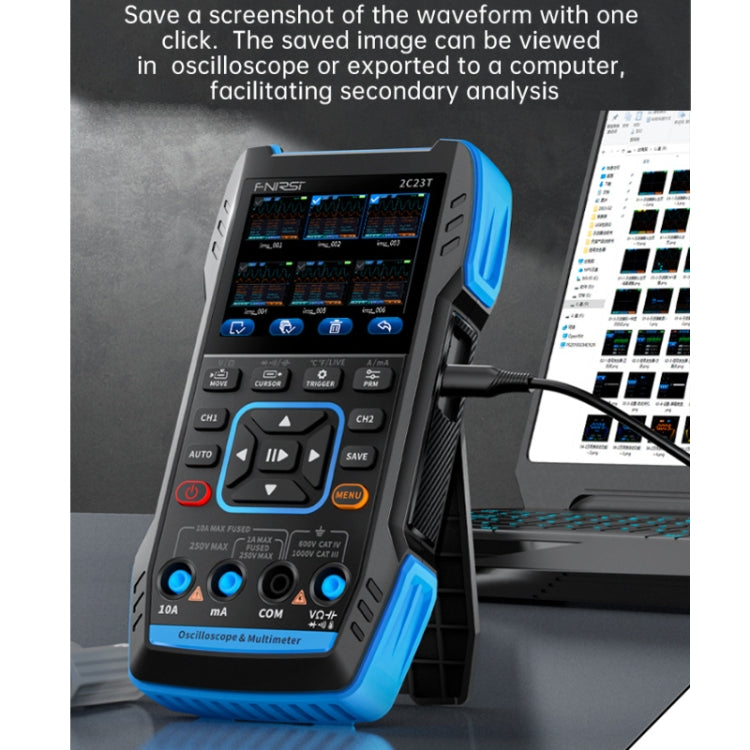

12. Save waveform screenshots with one click. The saved pictures can be viewed on an oscilloscope or exported to a computer to facilitate secondary analysis of the collected signals.

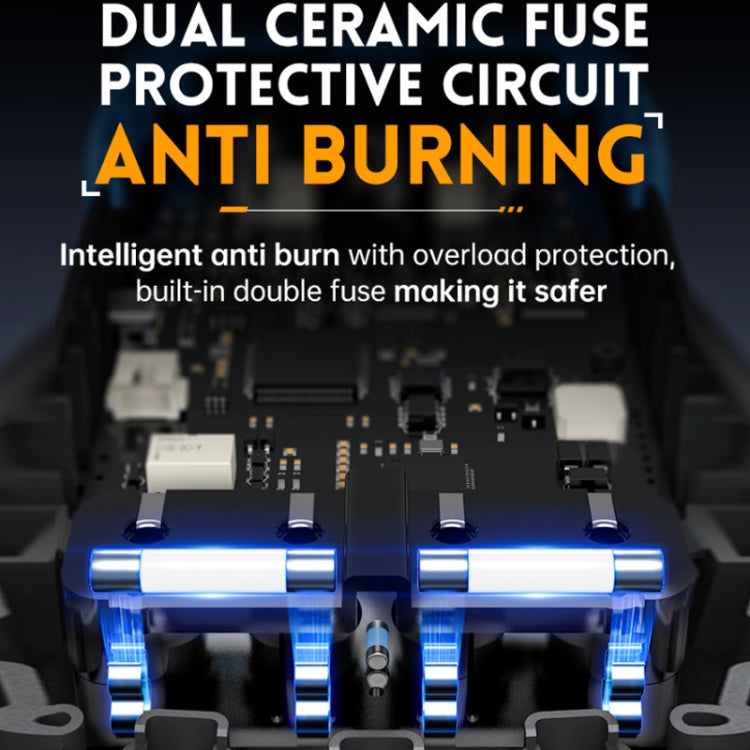

13. Intelligent anti-burning has overload protection, and built-in double fuses prevent meter burning and are safer

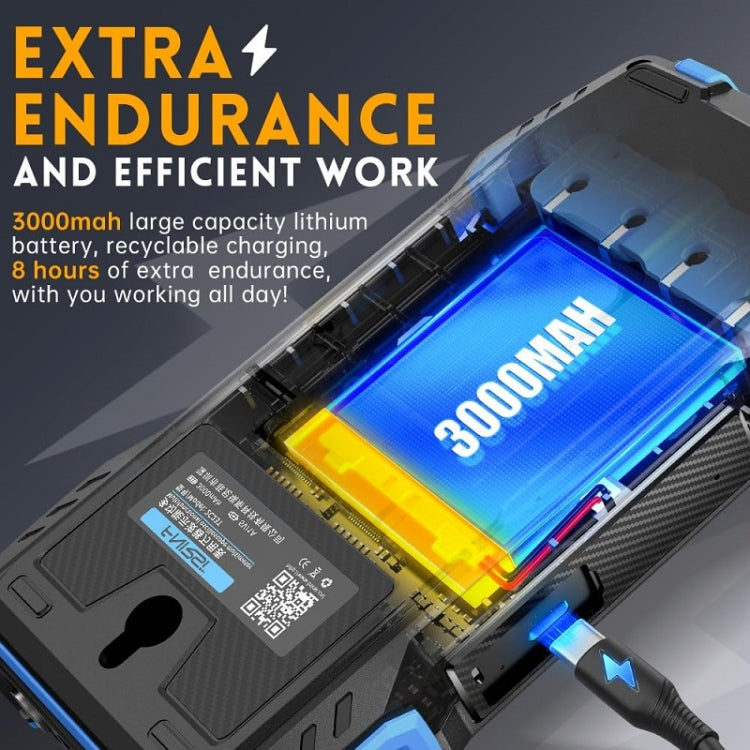

14. 3000mah large-capacity lithium battery, TYPE-C port can be recharged worry-free and labor-saving, and has a long battery life of 8 hours

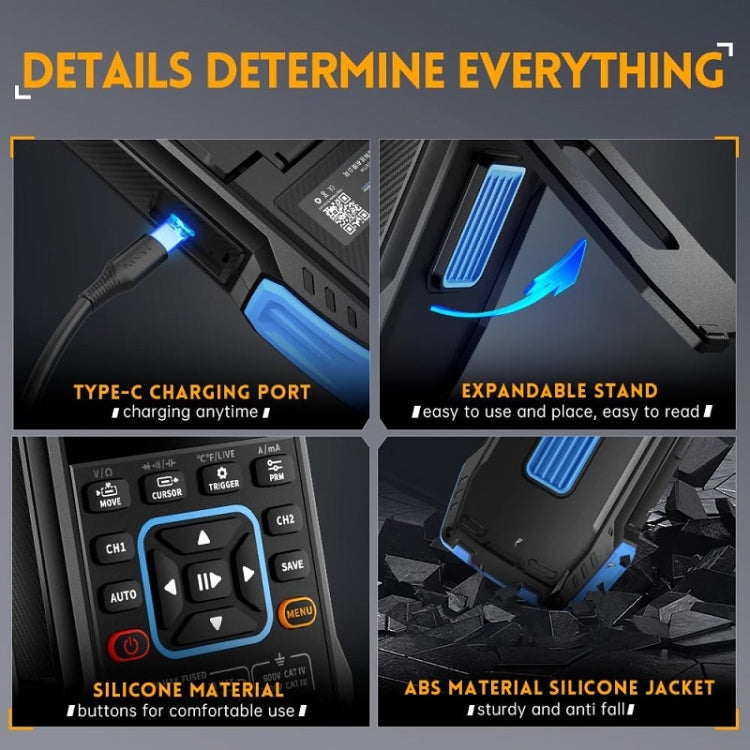

15. The extendable stand can be used and placed for easy reading.
16. ABS material + silicone jacket, sturdy and anti-fall, comfortable to the touch

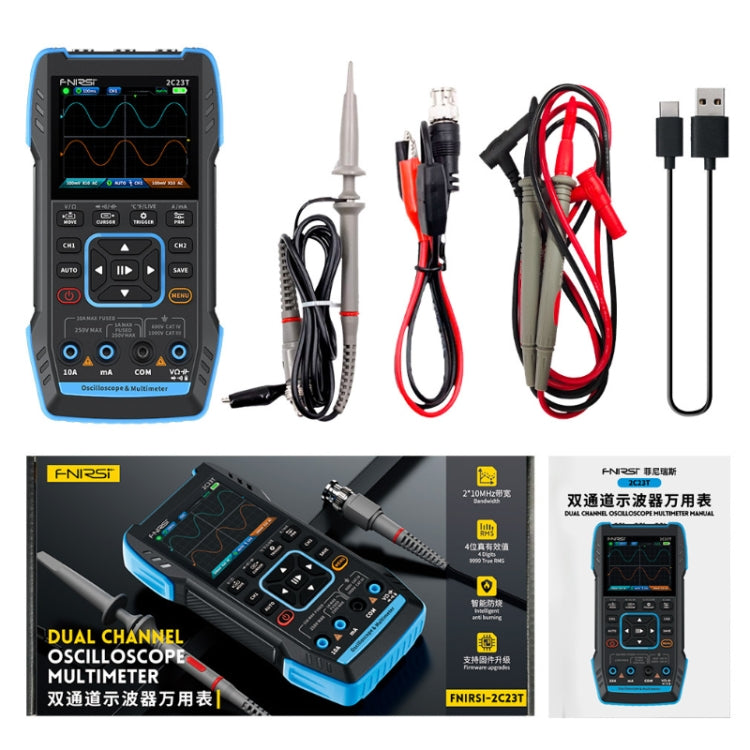

English standard:
1. 2C23T x 1
2. 10x probe x 1
3. Red and black alligator clip probe x 1
4. Multimeter lead x 1
5. Charging cable x 1
6. Packing box x 1
7. Instructions x 1

English upgrade:
1. 2C23T x 1
2. Instructions x 1
3. Red and black alligator clip probe x 1
4. Multimeter lead x 1
5. Charging cable x 1
6. Packing box x 1
7. 10x probe x 2
